12V 3KW Pure Sine Wave Inverter Charger


Sale Off
12V 3KW Pure Sine Wave Inverter Charger - ExpertPower Direct

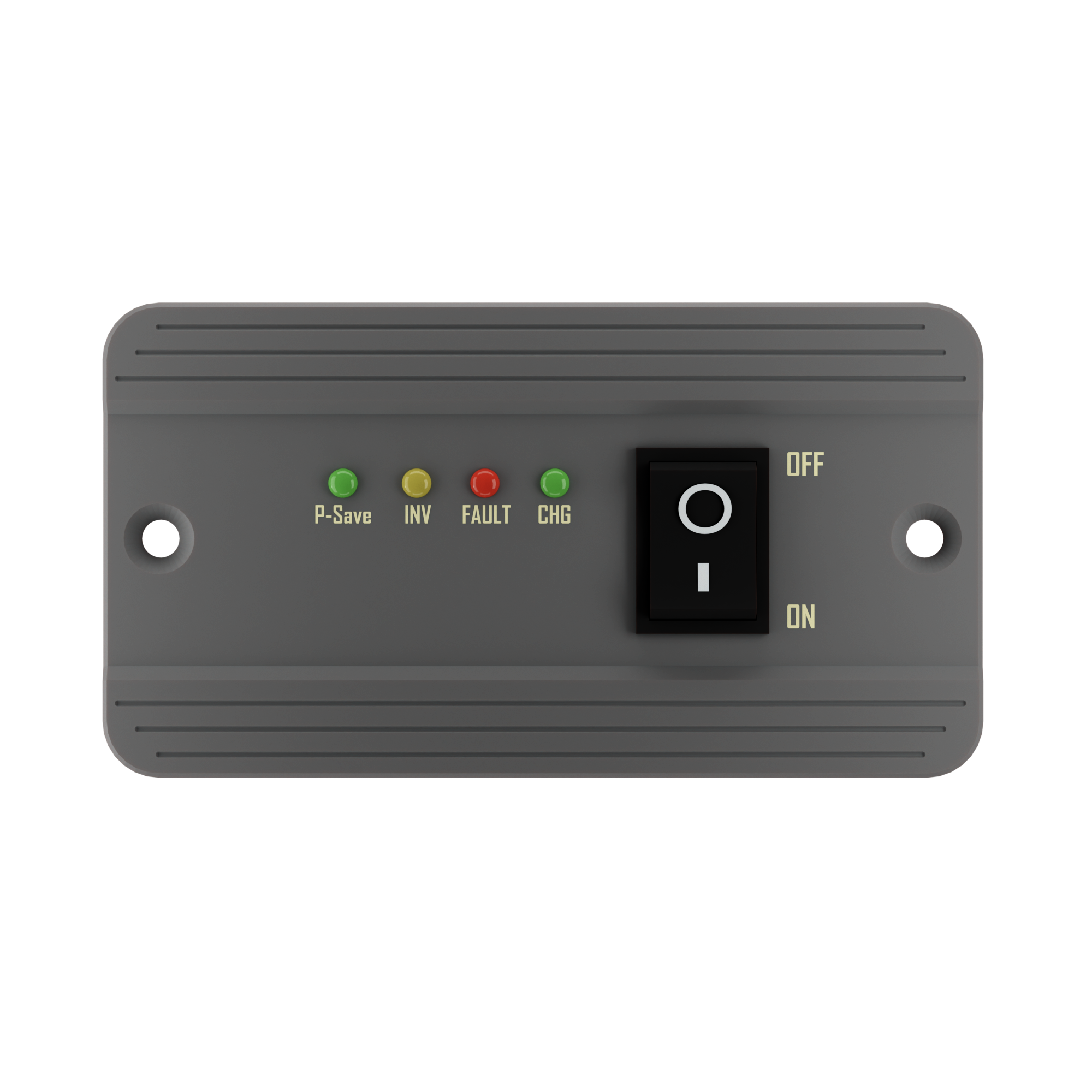

Switch RemoteDisplay Remote
$699.99$479.99
Add to Wishlist

  • Details
  • Bundles
  • Wide-Spectrum Compatibility

    The ExpertPower Pure Sine Wave Inverter/60A Charger is designed to meet the needs of all battery systems including AGM, Wet, Gel, and LiFePO4 with 8 profiles and built-in UPS functionality that automatically switches between shore power and battery power in an industry leading 5ms

  • Intelligence Driven CPU

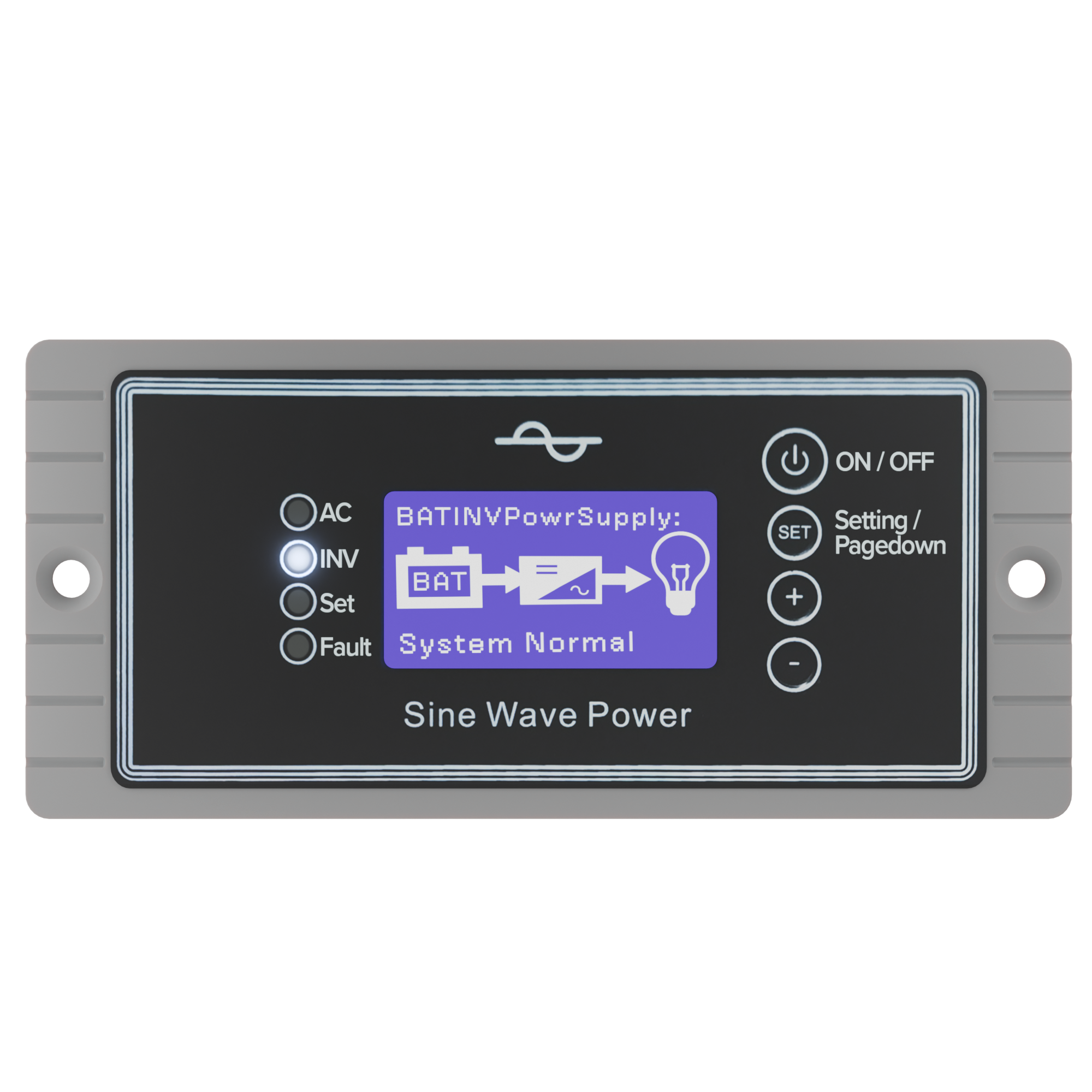

    An LED+LCD provides a methodical user interface that streamlines data on system status (i.e. Priority Mode, Frequency, Error Codes) and battery status (i.e. voltage, load) in an easy to understand way without compromising its practical capabilities of 90-99%.

  • Convenient Prioritization

    The inverter-charger includes priority settings that automatically switch between shore power and battery power to easily charge your battery system with ease and even able to be utilized without battery hookup for shore-power-only maintenance days, ensuring your power is ready when you need it. The package also includes a 33ft Smart Controller that allows you to adjust the inverter's settings from any comfortable range within your RV/Camper

  • Premium Quality

    The unit is composed of a clean-cut, steel-hardened iron case equipped with copper terminals and a double ball-bearing fan for maximized low-audibility cooling of the unit under high-power loads

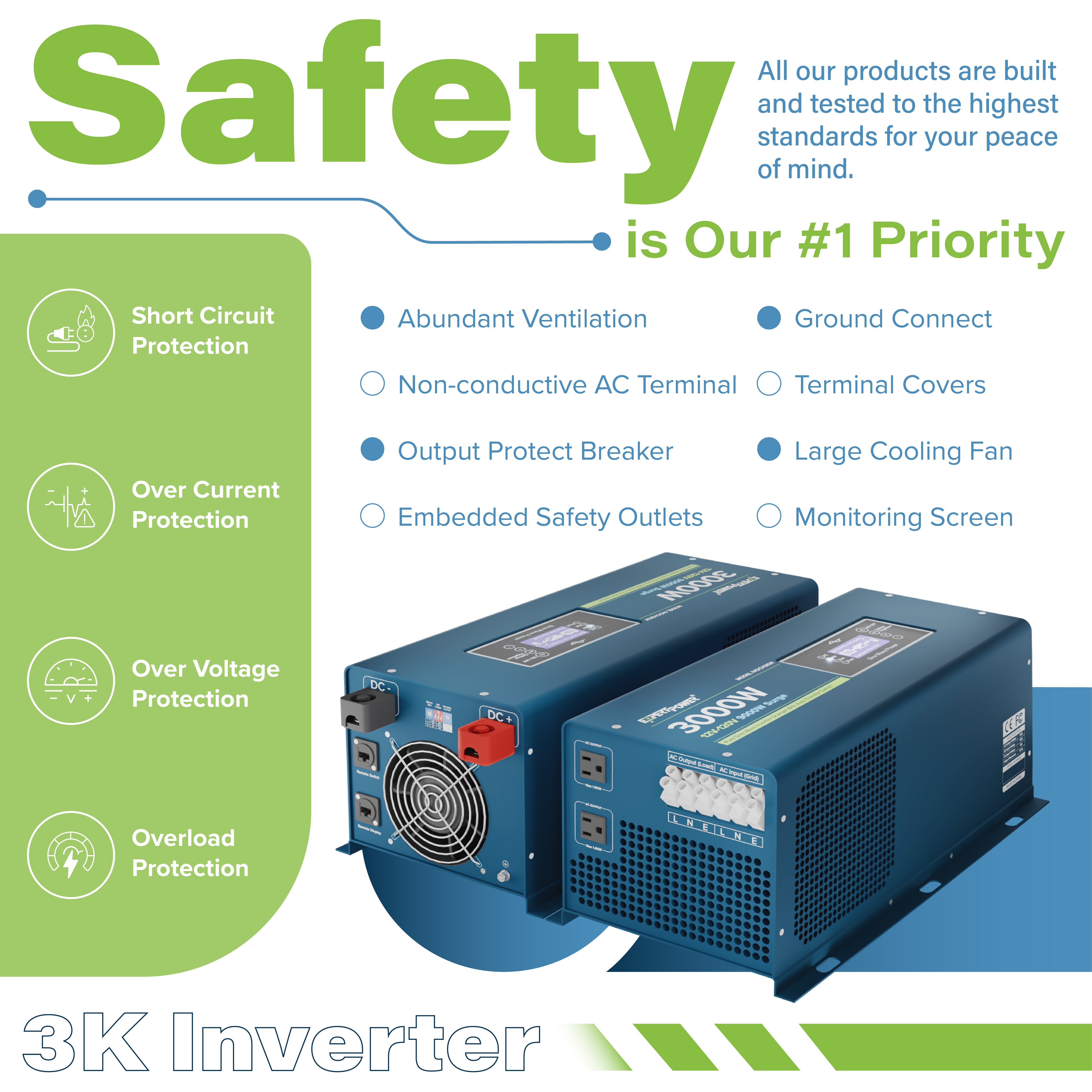

  • System-Wide Protection

    The CPU utilizes a complex series of algorithms that detect dangerous conditions protecting both the unit and your battery system from overloading, overcharging, overheating, deep discharge, and short circuits for full peace of mind

  • Wide-Spectrum Compatibility

    The ExpertPower Pure Sine Wave Inverter/30A Charger is designed to meet the needs of all battery systems including AGM, Wet, Gel, and LiFePO4 with 8 profiles and built-in UPS functionality that automatically switches between shore power and battery power in an industry leading 5ms

  • Intelligence Driven CPU

    An LED+LCD provides a methodical user interface that streamlines data on system status (i.e. Priority Mode, Frequency, Error Codes) and battery status (i.e. voltage, load) in an easy to understand way without compromising its practical capabilities of 90-99% efficiency and idle power saving consumption of 1-6W

  • Convenient Prioritization

    The inverter-charger includes priority settings that automatically switch between shore power and battery power to easily charge your battery system with ease and even able to be utilized without battery hookup for shore-power-only maintenance days, ensuring your power is ready when you need it. The package also includes a 33ft Smart Controller that allows you to adjust the inverter's settings from any comfortable range within your RV/Camper

  • Premium Quality

    The unit is composed of a clean-cut, steel-hardened iron case equipped with copper terminals and a double ball-bearing fan for maximized low-audibility cooling of the unit under high-power loads

  • System-Wide Protection

    The CPU utilizes a complex series of algorithms that detect dangerous conditions protecting both the unit and your battery system from overloading, overcharging, overheating, deep discharge, and short circuits for full peace of mind

Frequently Bought Together

Total Price:
$872.98
$969.98

You save: $97.00

$479.99 $699.99
$489.99 $759.99
SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS

Sale Off
12V 3KW Pure Sine Wave Inverter Charger - ExpertPower Direct

Voltage

12V


CAPACITY

60A


CONTROLER

26 Foot Communication Cable Included For Seamless Or Long Wiring


Weight

55 Lbs

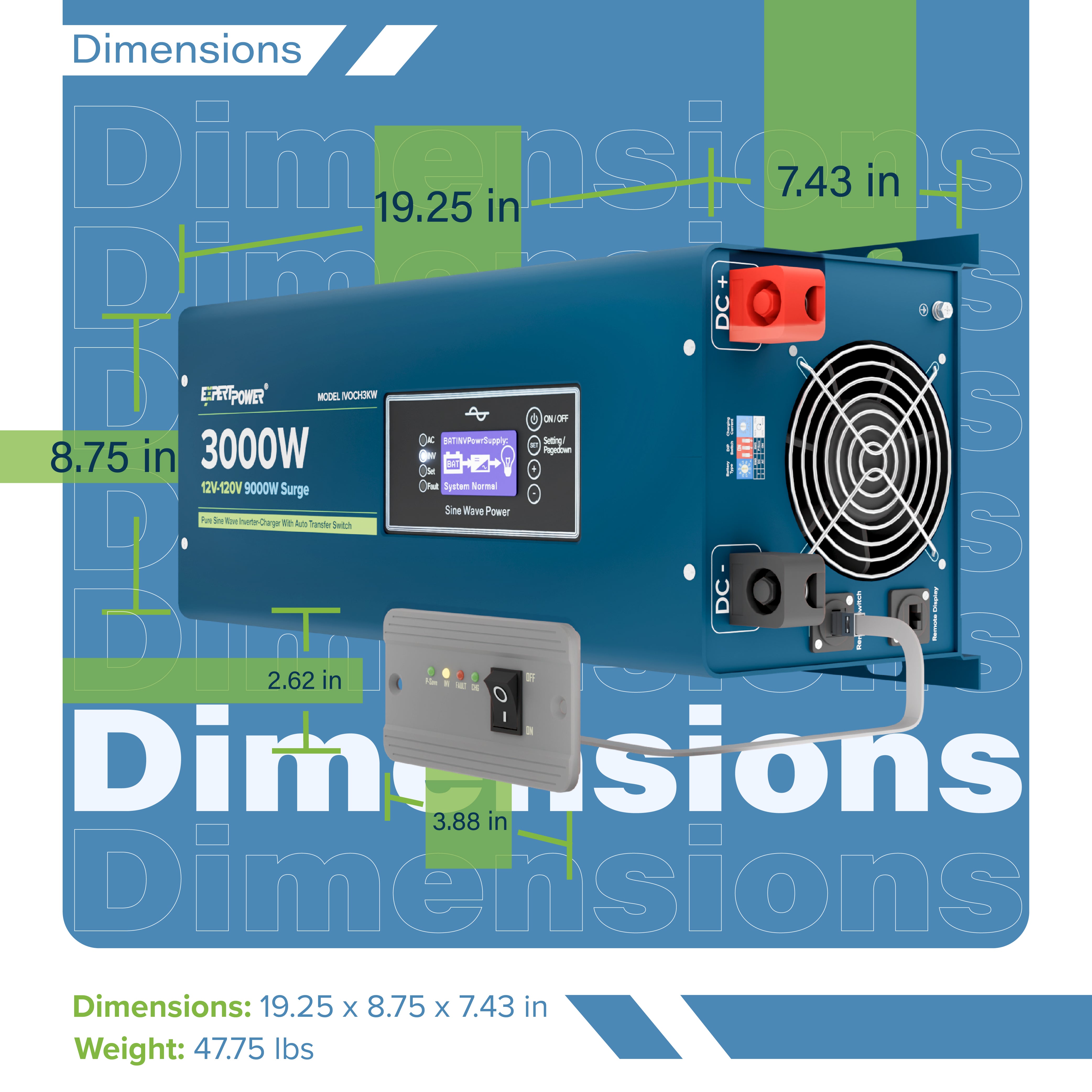

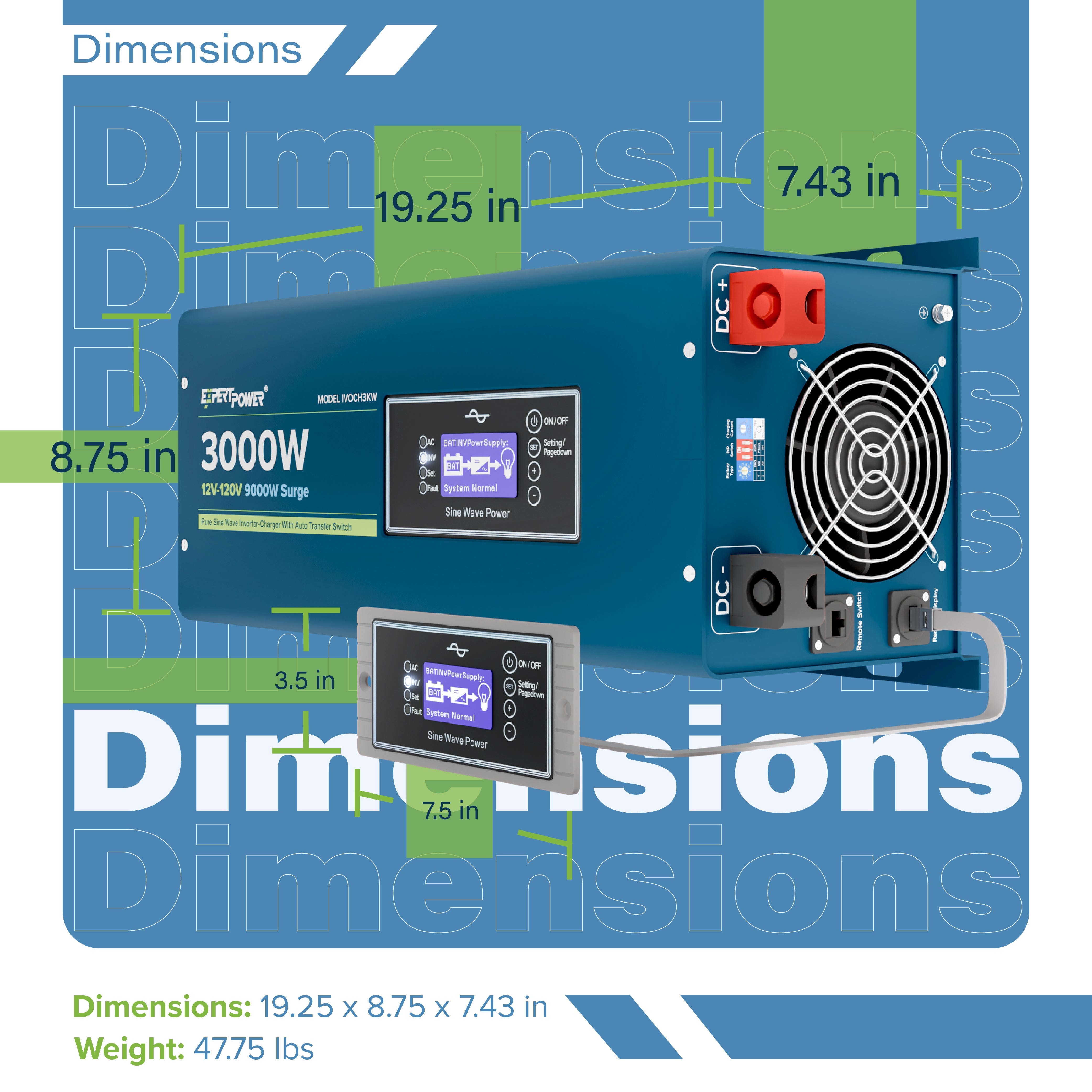

DIMENSIONS

18.38 x 7.63 x 7.8 In


ACCESSORIES

Manual, 1/0 AWG Copper Cables, and Terminal Accessories


Additional Features


specifications


PHYSICAL DETAILS

Dimensions

Weight

18.38 x 7.63 x 7.8 In

55 Lbs

Noise

Battery Compatibility
Battery Compatibility

Max 60dB

SLA, Flooded, Gel, AGM, LiFePO4


INTERNAL SPECS

Rated Input Voltage

Rated Output Voltage

Output Voltage Range

Nominal Output Frequency

Efficiency

12V

110Vac / 120Vac / 130Vac

±10% rms

50/60 ± 0.3Hz

>90%

Low Battery Alarm

Battery Charger Current

Power-saving mode

Power saving on

Humidity



Overload Protection






Overload Protection








Overload Protection





Temperature Ranges


10.5Vdc ± 0.3Vdc

60A

10W

20W~60W

5% to 95%

110%≤load≤125% ±10%: Shutdown after 15 min.


125%≤load≤150% ±10%: Shutdown after 10s


Load>150% ±10%: Shutdown after 20s

Operational:  32°F — 140°F



Storage:         5°F  — 140˚F

Automatic Shut-Down:

Low DC Input Voltage

High DC Input Voltage

10.0Vdc ± 0.3Vdc

16Vdc ± 0.3Vdc

Recovery:

High DC Input Voltage

15Vdc ± 0.3Vdc

Low Battery Alarm

Battery Charger Current

Humidity



Overload Protection






Overload Protection





Temperature Ranges


10Vdc ± 0.3Vdc

60A

5% to 95%

110%≤load≤125% ±10%: Shutdown after 15 min.


125%≤load≤150% ±10%: Shutdown after 60s


Load>150% ±10%: Shutdown after 20s

Operational:  32°F — 140°F



Storage:    5°F — 140˚F


WARRANTY / CERTIFICATIONS

Certification

UL2743/ CE / EMC / FCC

Warranty

1 Year

Reviews

Customer Reviews

Based on 7 reviews
71%
(5)
14%
(1)
0%
(0)
14%
(1)
0%
(0)
k
ken hallock
Works - But Disappointed

First the positive observations. Leaving the disappointment for last.

Upon arrival of inverter/charger unit, I decided to get my partially charged 460AH LiFePO4 battery fully charged. First tests were with unit connected to grid power - so AC pass through mode. Had to do the awkward pre-charge procedure. Good news though is that charge current into the battery looks right.

Moved on to test inverter mode with grid disconnected. Auto-switchover worked fine and 110VAC shows up on output as expected. Added a substantial AC load and watched the inverter drive that fine without voltage droop.

So what's the problem? In a nutshell, power efficiency. The specs look quite reasonable but when one actually looks at the measured power output-to-input ratio, the numbers are rather disappointing. Am pretty sure that gaming of the specs is happening - suspiciously if idle (overhead) power gets subtracted before computing the power ratio, the results come close to spec. Maybe something other manufacturers do too but I still think it is dodgy.

Finally, battery charging power efficiency is even worse. Yes, the correct 60A charge current does get produced - but with a 400W overhead penalty! That is a substantial amount of heat being dissipated from the inverter. Not a good thing in warm weather scenarios if mounted inside an RV. Plan B - the battery charger can be disabled with a configuration switch. Then use an efficient external battery charger.

I sent an inquiry to customer support asking about the disturbing power issues. Two weeks later and no response. Am guessing their way of avoiding the possibility of dealing with return/refund issues. Though their pay your own return shipping and hefty restoking fee policy pretty much makes that a non-starter. For me, I will put the unit to good use. Just another get what you pay for thing with a seemingly attractive price. Pretty much I got what I paid for rather than what I had hoped for.

C
Carlos Teissonniere
3K inverter

So far so good, only have used it for a week. It draws 9 amps on idle, nothing connected to it. Be aware.

T
Troy Tran
Clean and simple design

It works well. Only humming sound is from the fan when it needs to cool the unit. After that, it's totally quiet.

R
Raymond Goff
GREAT Product - Equally Great Customer Service!

I was really bummed-out with DC-to-AC power inverters with so-called "Modified-Sine-Wave (MSW) outputs. Either the attached loads (mostly inductive or motorized equipment) would hum loudly and become excessively hot during operation, as well as struggle to even run at full, rated output simply due to the higher-order harmonics present in such inverters' outputs, not to mention having occasionally caused actual equipment damage with MSW output power.

But thanks to my new ExpertPower AC-to-DC power inverter with its truly honest-to-goodness low-frequency (NOT high-frequency) Pure-Sine-Wave output, even my most demanding loads, such as a 10,000 BTU window unit A/C, run like a champ despite large inrush currents while the A/C compressor is starting-up. Just try and pull that stunt with an "el-cheapo" MSW inverter with its high-frequency "pretend sine-wave" output and it's literally hello 'snap, crackle and POP!'

But wait, it gets even better yet. When my ExpertPower equipment arrived, I discovered that its Display Remote Controller panel was totally DEAD. While certainly a little disappointing for me, I was definitely most pleased with the fact that Customer Service shipped a new controller to me; they had my inverter up-and-running just 2 days later because they shipped a new controller unit to me via 2-Day air at NO additional charge whatsoever! I know just who to turn to for all of my future power conversion needs. Kudos for a first-class job-Keep up the good work and team-effort!

P
Philip Trivilino
New 3k watt inverter charger

Shipping was fast and everything arrived in good condition. Installation was straight forward, I replaced a 10 year old modified sinewave Tripplite inverter charger in our RV so I could run a new residential refrigerator.
