200W | 20Ah

  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

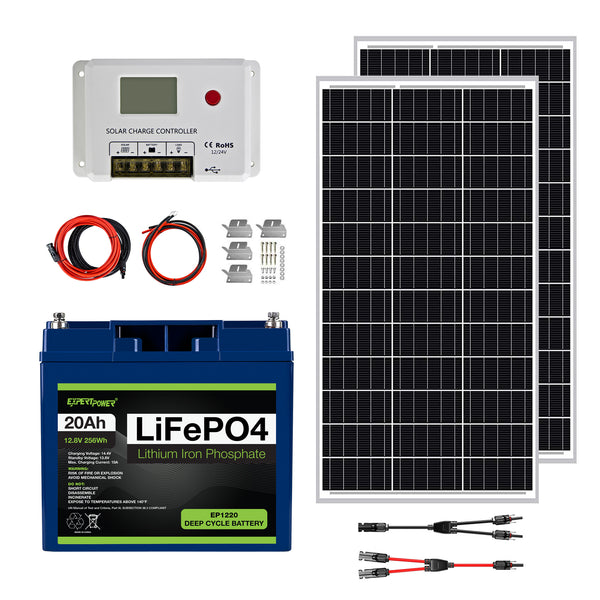

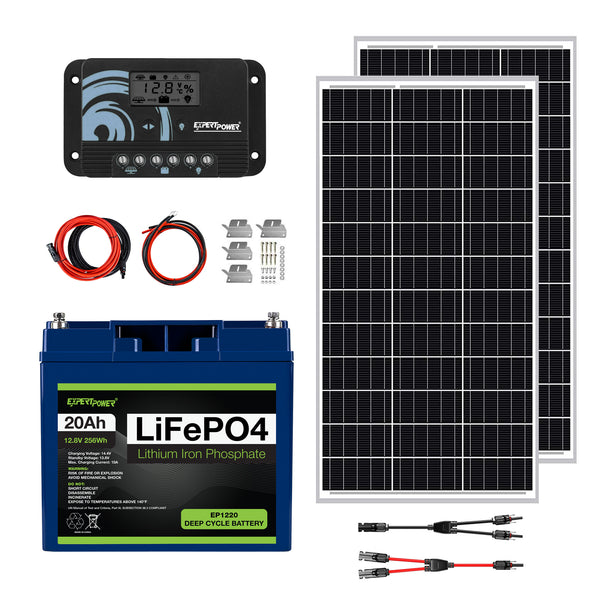

This Off-Grid Solar System Kit includes one 12V 20Ah LiFePO4 Battery, two 100W Monocrystalline Solar Panels and one 20A PWM Solar Charge Controller, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables and two set Solar Panel Mounting Brackets, and one set Y Branch Adapter Cable.

It is perfect for installation on the small solar project helps to buy and set up a complete off-grid solar kit simple, quick and easy. The 20Ah battery provides 256Wh worth of backup power and complimented with two 100W solar panels that can generate up to 10A worth of charging current for the batteries, keeping you up and running indefinitely.
Save 0 %
200W | 20Ah
$369.99$289.99
  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

This Off-Grid Solar System Kit includes one 12V 20Ah LiFePO4 Battery, two 100W Monocrystalline Solar Panels and one 20A PWM Solar Charge Controller, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables and two set Solar Panel Mounting Brackets, and one set Y Branch Adapter Cable.

It is perfect for installation on the small solar project helps to buy and set up a complete off-grid solar kit simple, quick and easy. The 20Ah battery provides 256Wh worth of backup power and complimented with two 100W solar panels that can generate up to 10A worth of charging current for the batteries, keeping you up and running indefinitely.
SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Kit Includes

1x

2x

1x

2x

1x

1x

1x

specifications

  • 12V 20Ah LiFePO4 Battery
    Solar Panel
  • 100W Solar Panel
    Solar Panel

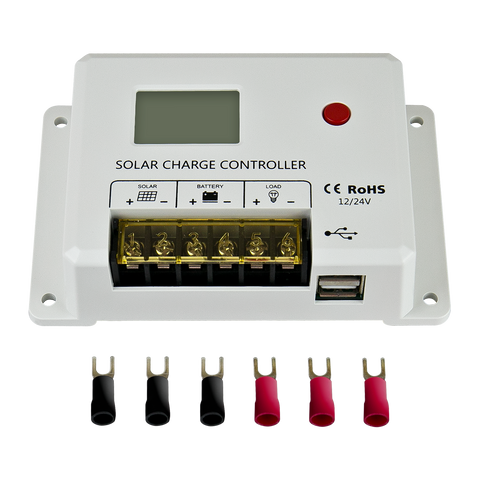

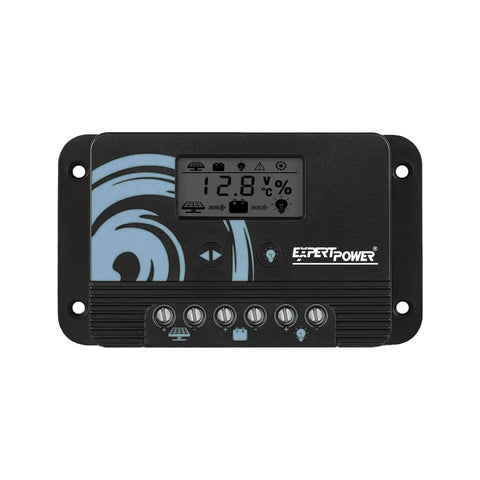

  • 20A PWM Solar Charge Controller
    Controller

DIMENSIONS

Length

Weight

7.1 in

3.03 in

Height

Height w/ Terminals

6.6 in

6.8 in

DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

LiFePO4

12.8V

14.4V

≥ 20Ah (25°C , 0.2°C)

F13/M5

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


5 Lbs

-

12 Months at 77˚F





2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

Max. Discharge Current:

Continue Discharge

Permanent Discharge

20A

45A 2Sec.

Max. Charge Current:

Continue Charge

20A

Weight

BCI Group Size

Storage Duration







Life Cycles




Operating Temperature


5 Lbs

-

12 Months at 77˚F





2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year

PHYSICAL DETAILS

Dimensions

Weight

35.43 x 22.83 x 1.18 in

12.6 Lbs

Cells

Connections

Monocrystalline solar cells

PV

INTERNAL SPECS

Rated Voltage [Vmpp]
Rated Current [Impp]
Open Circuit Voltage [Voc]

Short Circuit Current [Isc]

Max Series Fuse Rating

18.81V

5.32A

22.2V

5.6A

15A

Power Temp Coefficient

Voltage Temp Coefficient

Current Temp Coefficient

Max. System Voltage

–0.45% / °C

-0.37% / °C

0.1% / °C

1000VDC

WARRANTY / CERTIFICATIONS

Certification

UL

Warranty

1 Year

PHYSICAL DETAILS

Dimensions

Weight

4.8 x 2.8 x 1.4 in

0.4 Lbs

Terminals

Battery Compatibility
Battery Compatibility

Up to #14AWG

AGM, GEL, LiFePO4

INTERNAL SPECS

Nominal Voltage

Rated Charge Current

Max. PV Input Voltage

Self-Consumption

12/24V Auto Recognition

20A

55V

8mA/12V; 12mA/24V

Enclosure

Temp. Compensation


Temperature Ranges


IP30

-3mV/℃/2V

Operational:  -31°F — 113°F


Storage:        -31°F — 176˚F

WARRANTY / CERTIFICATIONS

Certification

CE / EMC Certifications

Warranty

1 Year
