12V 20Ah 磷酸铁锂 - EP1220



$189.99$129.99

  • Details
  • Supported Charger(s)
  • Bundles
  • Lithium Technology

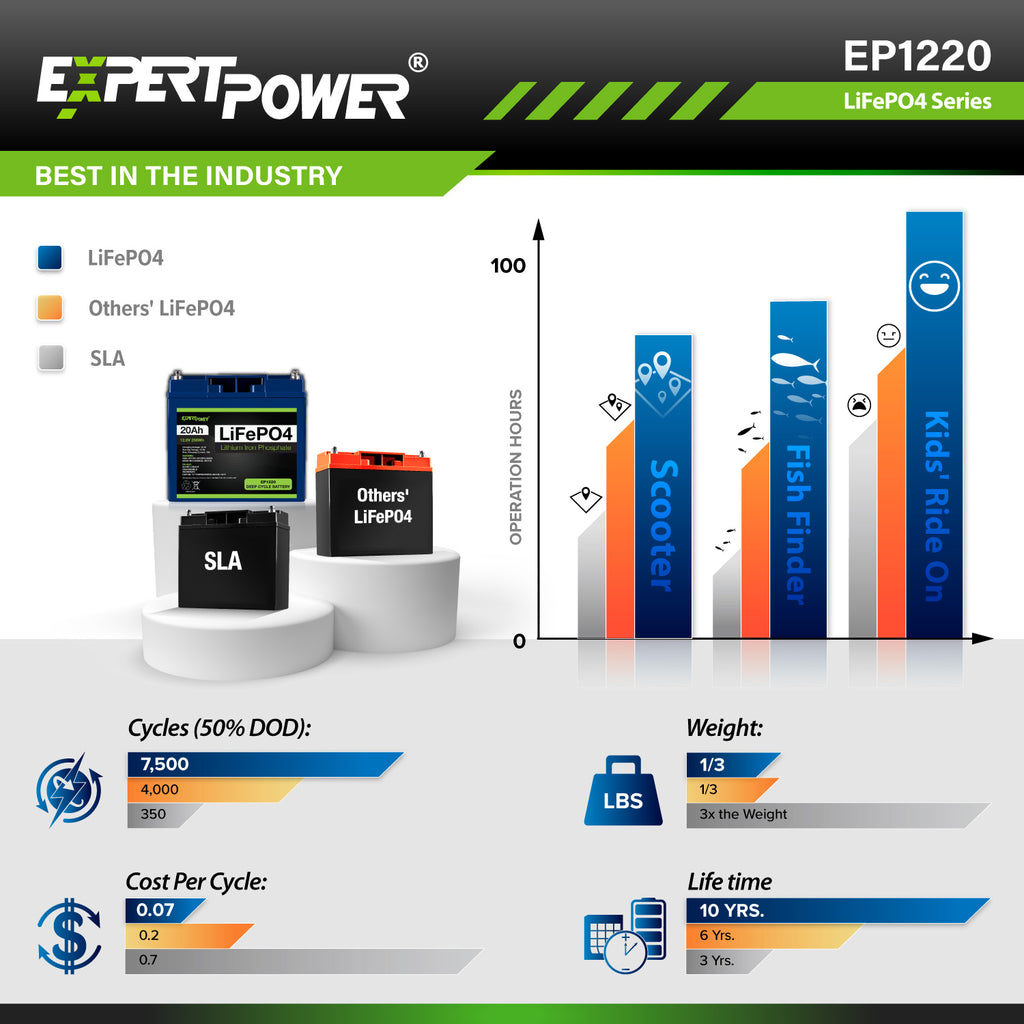

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

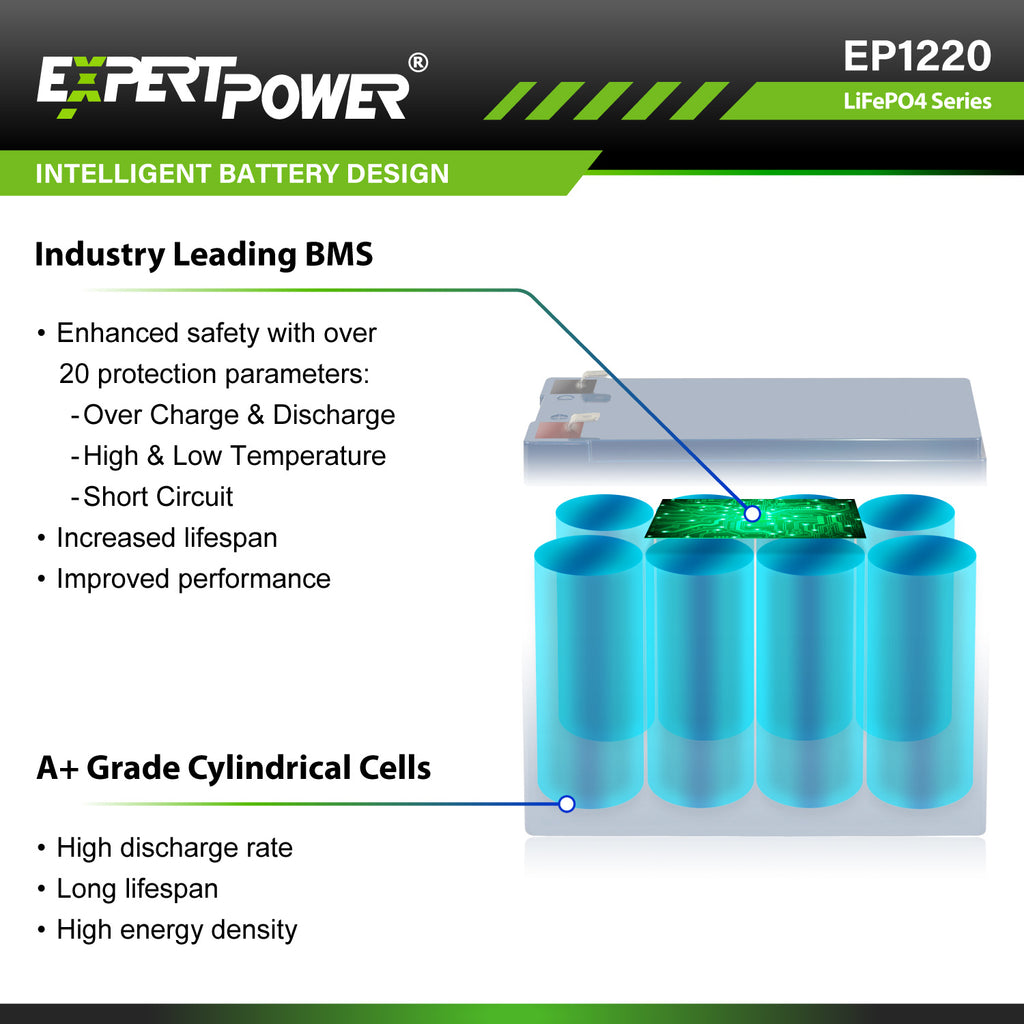

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

SMART CHARGERS

~Best Chargers For LiFePO4 Batteries~
These chargers are optimized for charging LiFePO4 with BMS.

12V 2A 智能磷酸铁锂充电器

More Details


12V 5A 智能磷酸铁锂充电器

More Details

SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Voltage

12V


CAPACITY

20安时


TERMINAL TYPE

F13/M5


Weight

5磅


DIMENSIONS

7.1 x 3.03 x 6.6 英寸


Voltage

12V


CAPACITY

20安时


TERMINAL TYPE

F13/M5


Weight

5磅


DIMENSIONS

7.1 x 3.03 x 6.6 英寸


RECOMMENDED CHARGER

12V 2A 智能磷酸铁锂充电器


Voltage

12V


CAPACITY

20安时


TERMINAL TYPE

F13/M5


Weight

5磅


DIMENSIONS

7.1 x 3.03 x 6.6 英寸


RECOMMENDED CHARGER

12V 2A 智能磷酸铁锂充电器


Additional Features


EP1220

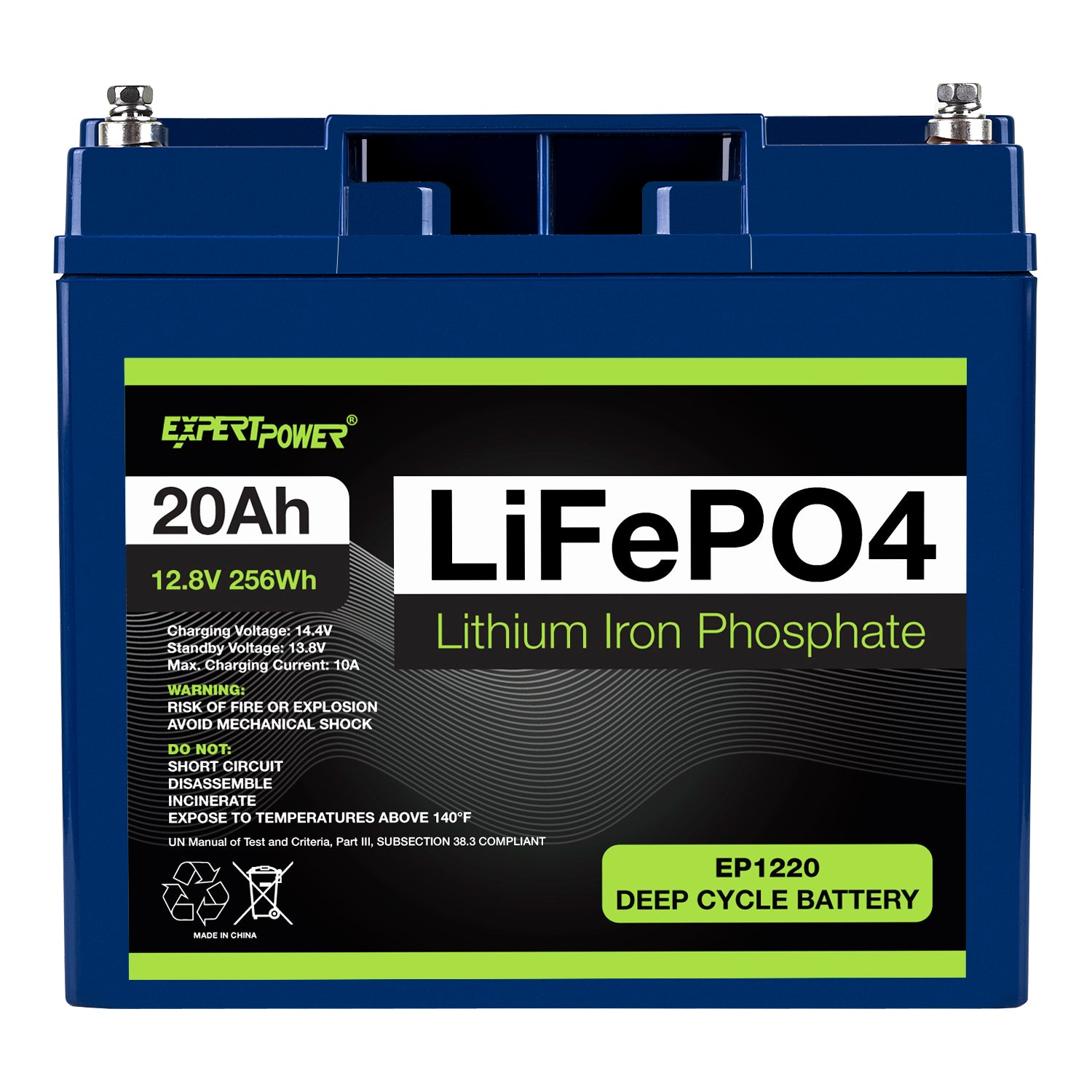

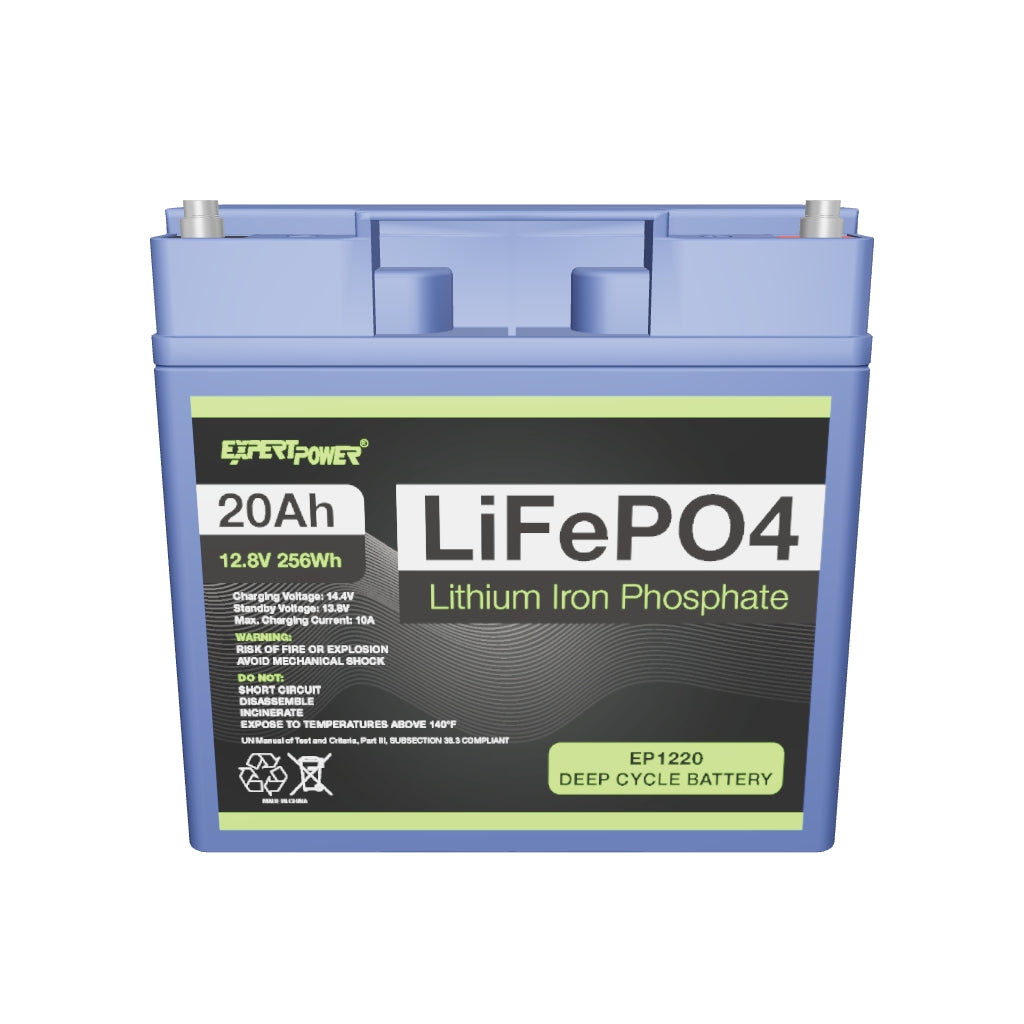

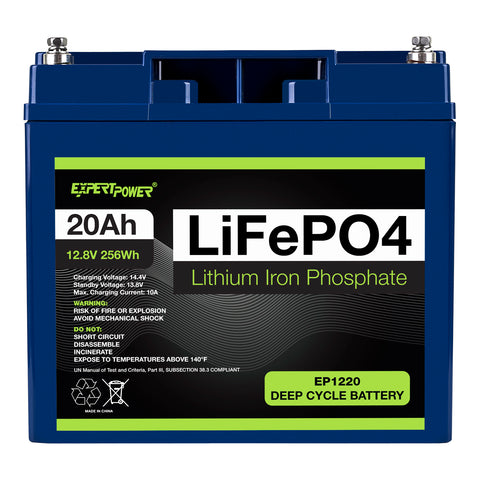

ExpertPower 12V 20Ah 磷酸铁锂深循环充电电池- EP1220

  • 更长的使用寿命: 我们的 LiFePO4 电池可提供 2500 - 7000 次循环和 10 年使用寿命,而典型铅酸化学电池可提供 200 - 500 次循环和 3 年寿命。
  • 高效动力: 我们的 LiFePO4 电池的平坦放电曲线在高达 90% 的容量使用情况下保持在 12V 以上,与铅酸电池的运行时间仅为 50% 相比,运行时间得到了天文数字的提升。
  • 无可挑剔的轻量级: 我们的 LiFePO4 电池的重量仅为铅酸电池的 1/3,这使得它成为房车、船舶和离网应用在考虑牵引或移动性时有争议的选择。
  • 完善的保护: 锂电池独特的内置电池管理系统(BMS)可防止过度充电、深度放电、过载、过热和短路以及过低的自放电率,确保长达 1 年的免维护存储。

specifications

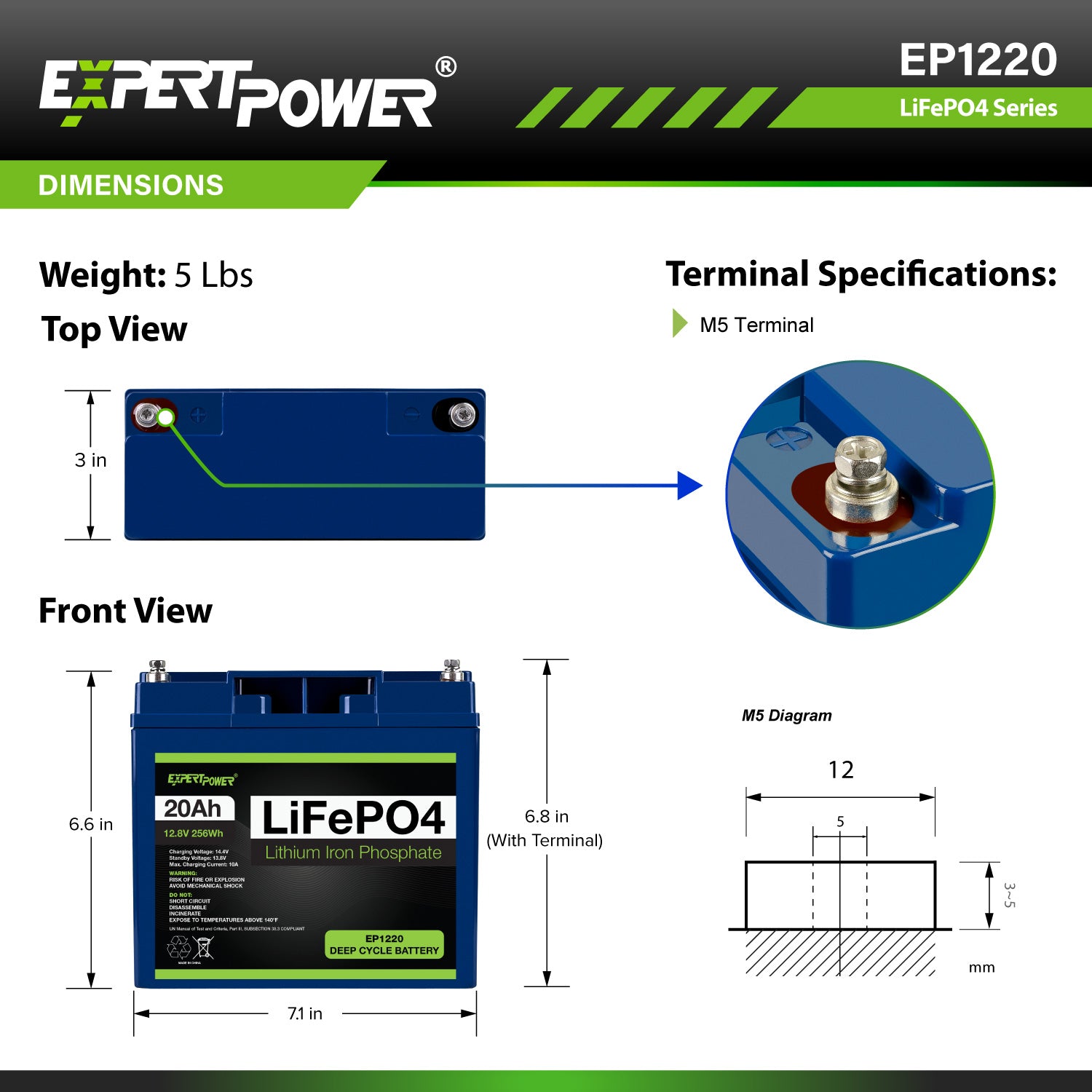

DIMENSIONS

Length

Width

7.1 英寸

3.03 英寸

Height

Height w/ Terminals

6.6 英寸

6.8 英寸


DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

磷酸铁锂

12.8V

14.4V

≥ 20Ah (25°C , 0.2°C)

F13/M5

Max. Discharge Current:

Continue Discharge

Permanent Discharge

20A

45A 2Sec.

Max. Charge Current:

Continue Charge

20A

Weight

BCI Group Size

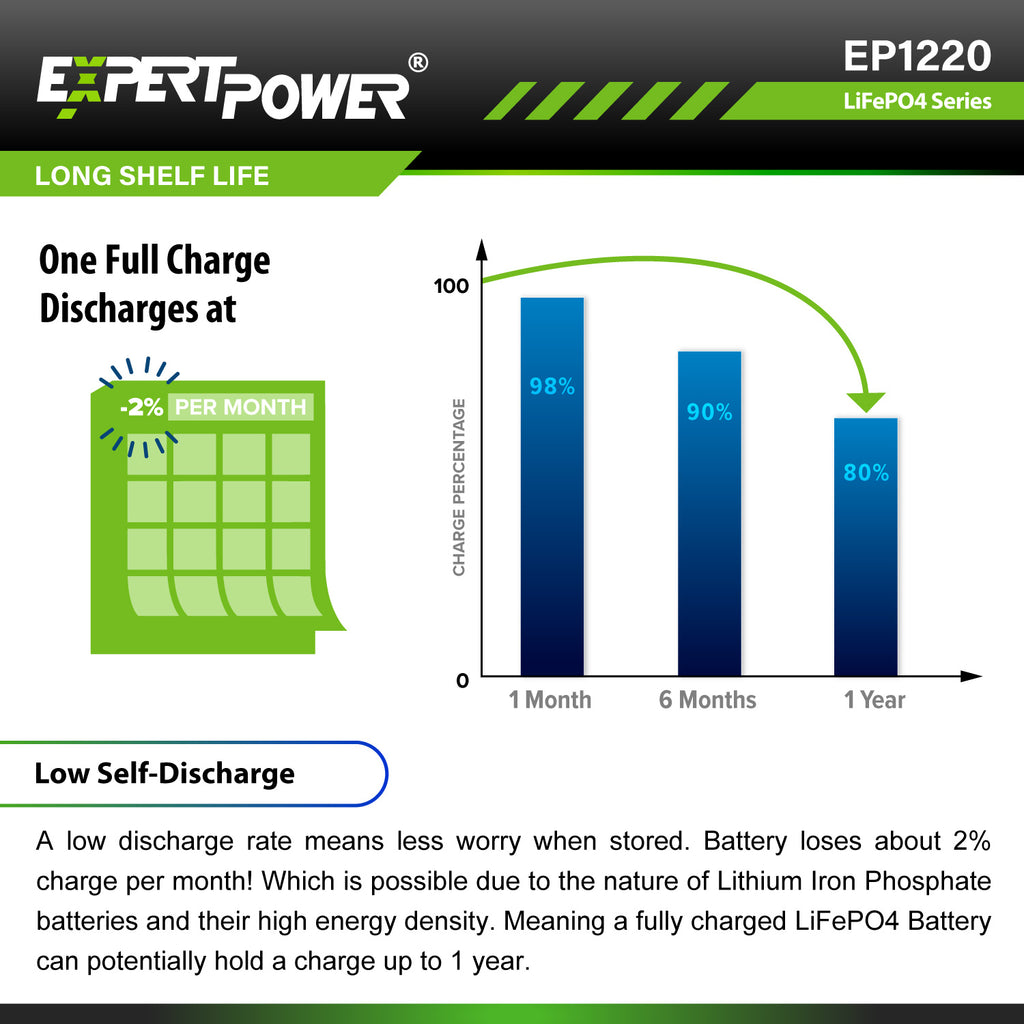

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


5磅

12 Months at 77˚F

814832028961

LBHLFP12_20

2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F


WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

2 Year
