首页 / 产品集合 / 产品注册集合 / 5千瓦时| 600W

5千瓦时| 600W

  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

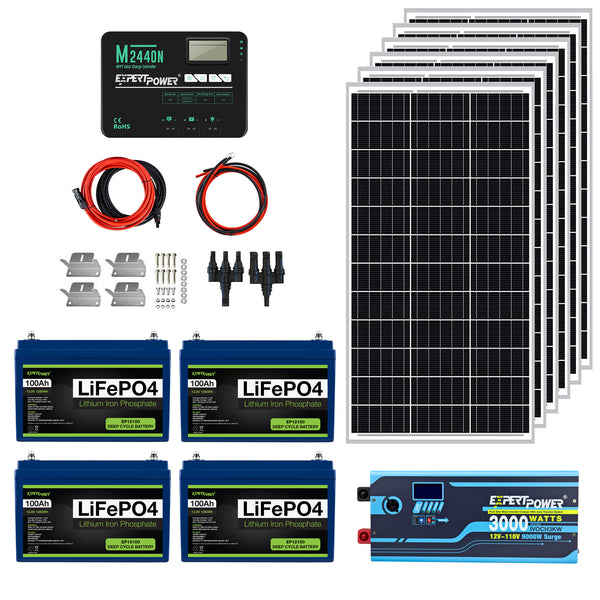

该离网太阳能系统套件包括四节 12V100Ah LiFePO4 电池、6 x 100W 太阳能电池板和一个 3000W 纯正弦波逆变器充电器和一个带蓝牙适配器的 40A MPPT 太阳能充电控制器、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 8AWG 电池电缆和 6 个太阳能电池板安装支架。

它非常适合安装在房车、船或露营车上，有助于简单、快速、轻松地购买和设置完整的离网太阳能套件。离网太阳能系统套件非常适合需要高多功能性的电力系统。两块四块电池可提供 5120Wh 的备用电源，其效率通过 3000W 纯正弦波逆变器最大化，智能而强大，足以充分利用电池的 150A 放电电流，并配有 6 个 100W 太阳能电池板，可产生多达 30 -36A 的电池充电电流，让您无限期地保持运行。

    Save 0 %
    5千瓦时| 600W
    $3,099.99$2,699.99
    • Details
    • Description

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, and ROHS Certifications for every battery.

    • Built-in Safety System

      Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, & ROHS Certifications for every battery.



    • DOT, IATA, and CAB Certified

      Approved for transport by Ground, Air, and Sea

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, & ROHS Certifications for every battery.

    • DOT, IATA, and CAB Certified

      Approved for transport by Ground, Air, and Sea

    该离网太阳能系统套件包括四节 12V100Ah LiFePO4 电池、6 x 100W 太阳能电池板和一个 3000W 纯正弦波逆变器充电器和一个带蓝牙适配器的 40A MPPT 太阳能充电控制器、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 8AWG 电池电缆和 6 个太阳能电池板安装支架。

    它非常适合安装在房车、船或露营车上，有助于简单、快速、轻松地购买和设置完整的离网太阳能套件。离网太阳能系统套件非常适合需要高多功能性的电力系统。两块四块电池可提供 5120Wh 的备用电源，其效率通过 3000W 纯正弦波逆变器最大化，智能而强大，足以充分利用电池的 150A 放电电流，并配有 6 个 100W 太阳能电池板，可产生多达 30 -36A 的电池充电电流，让您无限期地保持运行。

      SPECIFICATIONS

      REVIEWS

      DOWNLOADS

      FEATURES

      SPECIFICATIONS

      DOWNLOADS


      Kit Includes

      4x

      6x

      1x

      1x

      1x

      1x

      1x

      6x

      specifications

      • 100Ah LiFePO4 Battery
        Battery
      • 100W Solar Panel
        Solar Panel
      • 40A MPPT Controller
        Controller
      • 3KW Inverter Charger
        Bluetooth

      DIMENSIONS

      Length

      Weight

      13 英寸

      6.8 英寸

      Height

      Height w/ Terminals

      8.4 英寸

      9.3 英寸

      DETAILS

      Battery Composition

      Nominal Voltage

      Charging Voltage

      Rated Capacity

      Terminal Type

      磷酸铁锂

      12.8V

      14.4V

      ≥ 100Ah (25°C , 0.2°C)

      F12/M8

      Weight

      BCI Group Size

      Storage Duration

      UPC

      SKU



      Life Cycles




      Operating Temperature


      27 磅

      31

      12 Months at 77˚F





      2500 with 100% DOD


      3600 with 80% DOD


      7000 with 50% DOD

      Discharge:  -4 — 140˚F



      Charge:  32 — 140˚F

      Max. Discharge Current:

      Continue Discharge

      Permanent Discharge

      100A

      200A 2Sec.

      Max. Charge Current:

      Continue Charge

      50A

      Weight

      BCI Group Size

      Storage Duration







      Life Cycles




      Operating Temperature


      27 磅

      31

      12 Months at 77˚F





      2500 with 100% DOD


      3600 with 80% DOD


      7000 with 50% DOD

      Discharge:  -4 — 140˚F



      Charge:  32 — 140˚F

      WARRANTY / CERTIFICATIONS

      Certification

      UL, CE, DOT, & ISO

      Warranty

      1 Year

      PHYSICAL DETAILS

      Dimensions

      Weight

      40.16 x 20.08 x 1.38 英寸

      12.8 磅

      Cells

      Connections

      单晶太阳能电池

      光伏发电

      INTERNAL SPECS

      Rated Voltage [Vmpp]
      Rated Current [Impp]
      Open Circuit Voltage [Voc]

      Short Circuit Current [Isc]

      Max Series Fuse Rating

      18.81V

      5.32A

      22.2V

      5.6A

      15A

      Power Temp Coefficient

      Voltage Temp Coefficient

      Current Temp Coefficient

      Max. System Voltage

      –0.45% / °C

      -0.37% / °C

      0.1% / °C

      1000VDC

      WARRANTY / CERTIFICATIONS

      Certification

      UL

      Warranty

      1 Year

      PHYSICAL DETAILS

      Dimensions

      Weight

      4.68 x 2.95 x 1.08 英寸

      0.27 磅

      Noise

      Battery Compatibility
      Battery Compatibility



      SLA, Flooded, Gel, AGM, LiFePo4

      INTERNAL SPECS

      Rated Input Voltage

      Rated Output Voltage

      Output Voltage Range

      Nominal Output Frequency

      Efficiency











      Automatic Shut-Down:

      Low DC Input Voltage

      High DC Input Voltage





      Recovery:

      High DC input voltage



      Low Battery Alarm

      Battery Charger Current

      Power-saving mode

      Power saving on

      Humidity



      Overload Protection






      Overload Protection








      Overload Protection





      Temperature Ranges
















      WARRANTY / CERTIFICATIONS

      Certification

      CE / EMC 认证

      Warranty
