Inicio / Colecciones / Colección de kits solares - LiFePO4 / 100W | 20Ah

100W | 20Ah

  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

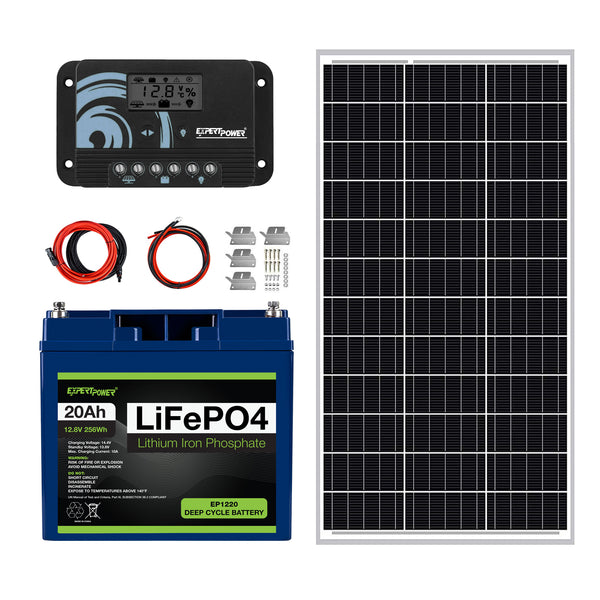

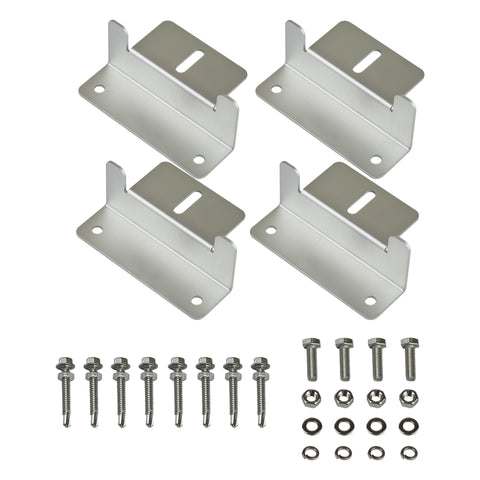

Este kit de sistema solar fuera de la red incluye una batería LiFePO4 de 12 V y 20 Ah, un panel solar monocristalino de 100 W y un controlador de carga solar PWM de 10 A, un par de cables solares de 10 pies y 12 AWG, un par de cables de batería de 6 pies y 12 AWG y un juego de soportes de montaje para paneles solares.

Es perfecto para la instalación en pequeños proyectos solares, ayuda a comprar y configurar un kit solar completo fuera de la red de forma sencilla, rápida y sencilla. La batería de 20 Ah proporciona 256 Wh de energía de respaldo y se complementa con un panel solar de 100 W que puede generar hasta 5 A de corriente de carga para las baterías, manteniéndolo en funcionamiento indefinidamente.
Save 0 %
100W | 20Ah
$269.99$189.99
  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

Este kit de sistema solar fuera de la red incluye una batería LiFePO4 de 12 V y 20 Ah, un panel solar monocristalino de 100 W y un controlador de carga solar PWM de 10 A, un par de cables solares de 10 pies y 12 AWG, un par de cables de batería de 6 pies y 12 AWG y un juego de soportes de montaje para paneles solares.

Es perfecto para la instalación en pequeños proyectos solares, ayuda a comprar y configurar un kit solar completo fuera de la red de forma sencilla, rápida y sencilla. La batería de 20 Ah proporciona 256 Wh de energía de respaldo y se complementa con un panel solar de 100 W que puede generar hasta 5 A de corriente de carga para las baterías, manteniéndolo en funcionamiento indefinidamente.
SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Kit Includes

1x

1x

1x

1x

1x

1x

specifications

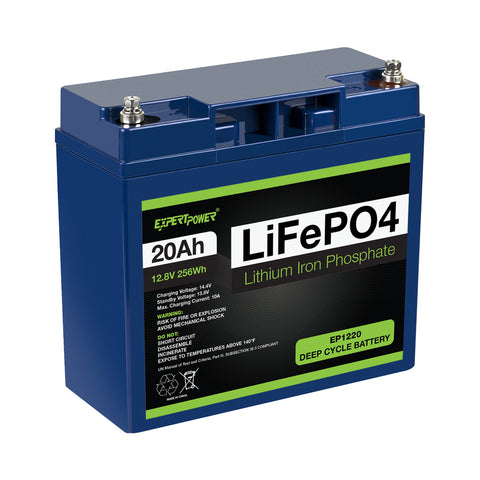

  • 12V 20Ah LiFePO4 Battery
    Solar Panel

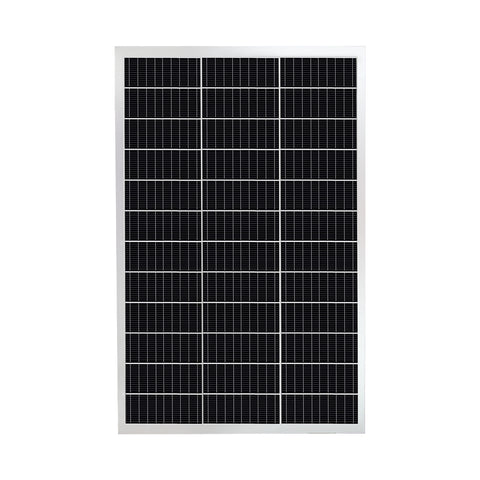

  • 100W Solar Panel
    Solar Panel

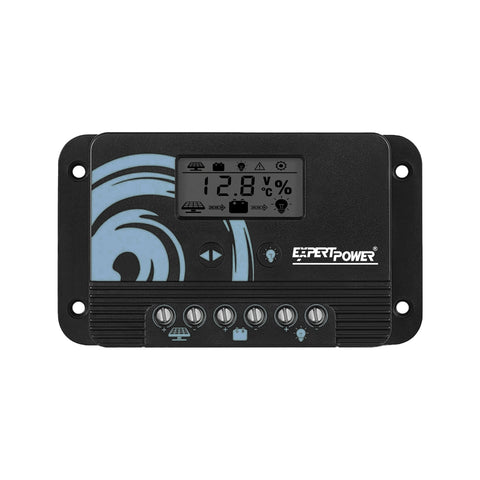

  • 10A PWM Solar Charge Controller
    Controller

DIMENSIONS

Length

Weight

7,1 pulgadas

3,03 pulgadas

Height

Height w/ Terminals

6,6 pulgadas

6,8 pulgadas

DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

LiFePO4

12.8V

14,4 V

≥ 20Ah (25°C , 0.2°C)

F13/M5

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


5 libras

-

12 Months at 77˚F





2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

Max. Discharge Current:

Continue Discharge

Permanent Discharge

20A

45A 2Sec.

Max. Charge Current:

Continue Charge

20A

Weight

BCI Group Size

Storage Duration







Life Cycles




Operating Temperature


5 libras

-

12 Months at 77˚F





2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year

PHYSICAL DETAILS

Dimensions

Weight

40,16 x 20,08 x 1,38 pulgadas

12,8 libras

Cells

Connections

Células solares monocristalinas

fotovoltaica

INTERNAL SPECS

Rated Voltage [Vmpp]
Rated Current [Impp]
Open Circuit Voltage [Voc]

Short Circuit Current [Isc]

Max Series Fuse Rating

18.81V

5.32A

22.2V

5.6A

15A

Power Temp Coefficient

Voltage Temp Coefficient

Current Temp Coefficient

Max. System Voltage

–0.45% / °C

-0.37% / °C

0.1% / °C

1000VDC

WARRANTY / CERTIFICATIONS

Certification

UL

Warranty

1 Year

PHYSICAL DETAILS

Dimensions

Weight

5 x 3 x 1,4 pulgadas

0,32 libras

Terminals

Battery Compatibility
Battery Compatibility

Hasta #14AWG

AGM, GEL, LiFePO4

INTERNAL SPECS

Nominal Voltage

Rated Charge Current

Max. PV Input Voltage

Self-Consumption

12/24V Auto Recognition

10A

55V

8mA/12V; 12mA/24V

Enclosure

Temp. Compensation


Temperature Ranges


IP30

-3mV/℃/2V

Operational:  -31°F — 113°F


Storage:        -31°F — 176˚F

WARRANTY / CERTIFICATIONS

Certification

Certificaciones CE/EMC

Warranty

1 Year
